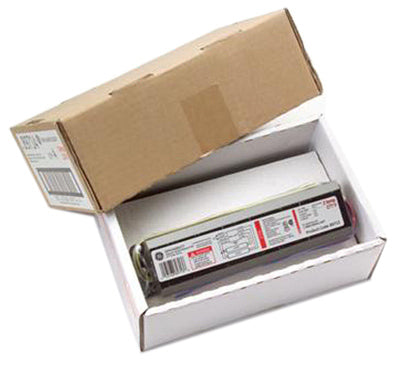

GE Lighting 71730 LFL UltraMax™ Electronic 3 or 4 Lamp Ballast

GE Lighting 71730 LFL UltraMax™ Electronic 3 or 4 Lamp Ballast

$32.81

Created with Sketch.
Shipping charges calculated at checkout.
Created with Sketch.
Usually ships within 24 hours
1
Request a Bulk Quote

Thank you for your quote request. We will be in touch.
SKU: 11162716
MFG: 71730

Description

GE LFL UltraMax™ Electronic High Efficiency Multivolt Instant Start Ballast for the following bulbs: F32T8, F32T8WM, F28T8, F25T12, F25T8, F32T8-25 Watt, F17T8, FE15T8. Starting Temperature: -20 Degrees Fahrenheit. Normal ballast power factor: .87-.98, 9.5"L x 1.7"W x 1.2"H. High efficiency multi-volt 120-277. Instant start.

  • Energy saving high efficiency instant start electronic ballast (> 90%)
  • Multi-Voltage Technology handles voltage from 120 to 277V
  • UL Type CC Rating provides protection against arcing in electrical devices.
  • Anti-Striation Control for better light quality, with no striations.
  • UL 55C Ambient Rating - HighTemperature Protection Circuit
  • Cold temperature -20F Minimum Starting Temperature

General Characteristics:

  • Application: 4 or 3- F32T8 120 to 277 "N".87 BF I-Pack 4/carton:
  • Category: Linear Fluorescent:
  • Ballast Type: Electronic - High Efficiency Multivolt Instant Start
  • Starting Method: Instant start
  • Lamp Wiring: Parallel
  • Line Voltage Regulation (+/-) (NOM): 10 %
  • Case Temperature (MAX): 70 °C(158 °F)
  • Ballast Factor: Normal
  • Power Factor Correction: Active
  • Sound Rating: A (20-24 decibels)
  • Additional Info: Anti-striation control, Auto-restart, Thermally protected

Electrical Characteristics:

  • Supply Current Frequency (NOM): 50.0 Hz

Dimensions:

  • Case dimensions
    • Length (L): 9.5 in (241.30 mm)
    • Width (W): 1.7 in (43.18 mm)
    • Height (H): 1.2 in (30.48 mm)
  • Mounting dimensions
    • Mount Length (M): 9.0 in (228.60 mm)
    • Mount Width (X or F): 1.0 in (26.67 mm)
    • Mount Slots (MS): 0.3 in (8.20 mm)
  • Exit Type: Side
Lead lengths Qty Exit Length (± 1 in.)
Black 1 Left 25.0 in (635 mm)
White 1 Left 25.0 in (635 mm)
Blue 2 Right 31.0 in (787 mm)
Red 2 Right 31.0 in (787 mm)
Yellow 2 Left 39.0 in (991 mm)

Specifications

MFR:
71730
SKU:
11162716
UPC:
043168717304
Brand:
GE Lighting
Length:
10
Width:
2
Height:
2
