Selkirk 208622 Thru-The-Wall Support Kit, 8", #8T-TWK
Selkirk 208622 Thru-The-Wall Support Kit, 8", #8T-TWK
$1,111.29
SKU: 10871578
MFG: 208622
Description
For a wall-supported chimney system with a horizontal connector passing through an exterior wall, connecting to a Tee and running vertically up the exterior wall to termination above the roof line. The Thru-the-Wall Support Kit provides all necessary parts for a complete installation with the exception of required Insulated Pipe Lengths to reach your desired chimney height. One Wall Band (WB) is included in the kit. Additional Wall Bands could be required if your vertical chimney run is more than 16 feet high.
- Part No. 8T-TWK
- Diameter: 8"
- One Wall Band (WB) is included in the kit. Additional Wall Bands could be required if your vertical chimney run is more than 16 feet high
- In the event that your vertical chimney run penetrates the roof eave, your installation could also require an Adjustable Flashing (AF) and Storm Collar (SC)

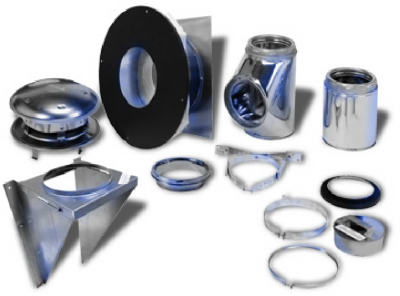

- Contents: Round Top CT, 12" Insulated Pipe Length T-12, Wall Band WB, Insulated Tee/Plug IT, Finishing Collar FC, Wall Support Kit WSK, Chimney Pipe Adapter CPA, Insulated Wall Thimble IWT
Additional info:
- In the event that your vertical chimney run penetrates the roof eave, your installation could also require an Adjustable Flashing (AF) and Storm Collar (SC).
Specifications
MFR:
208622
SKU:
10871578
UPC:
053713131950
Brand:
Selkirk
Length:
17
Width:
24
Height:
33
