Prime-Line N 6630 Adjustable Mirror Door Roller Assembly, Steel
Prime-Line N 6630 Adjustable Mirror Door Roller Assembly, Steel
$10.63
SKU: 12601545
MFG: N 6630
Description

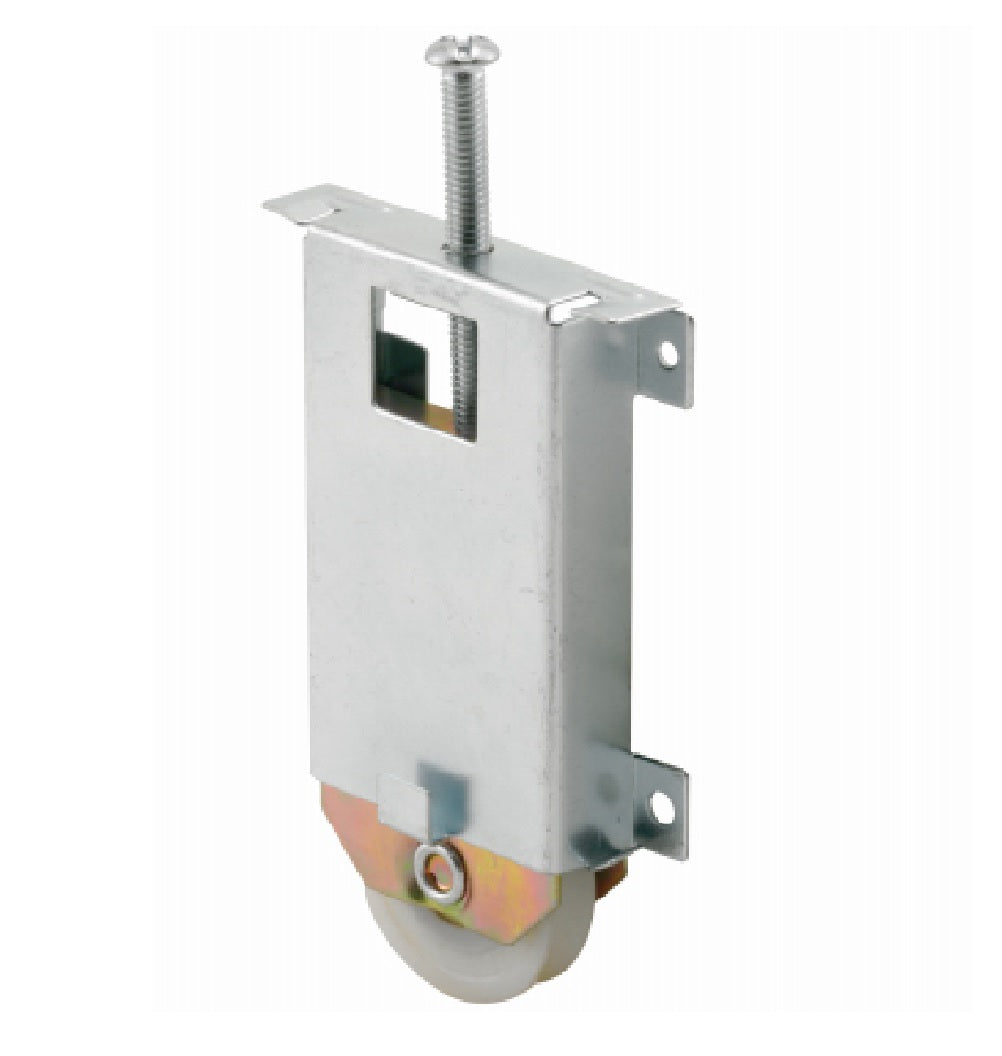

This is a paneled mirror door roller assembly with a concave nylon roller. Used on Monarch Mirror Doors L-Series. The grooved ball bearing nylon roller provides a smooth ride as it slide back and forth.
Highlights:

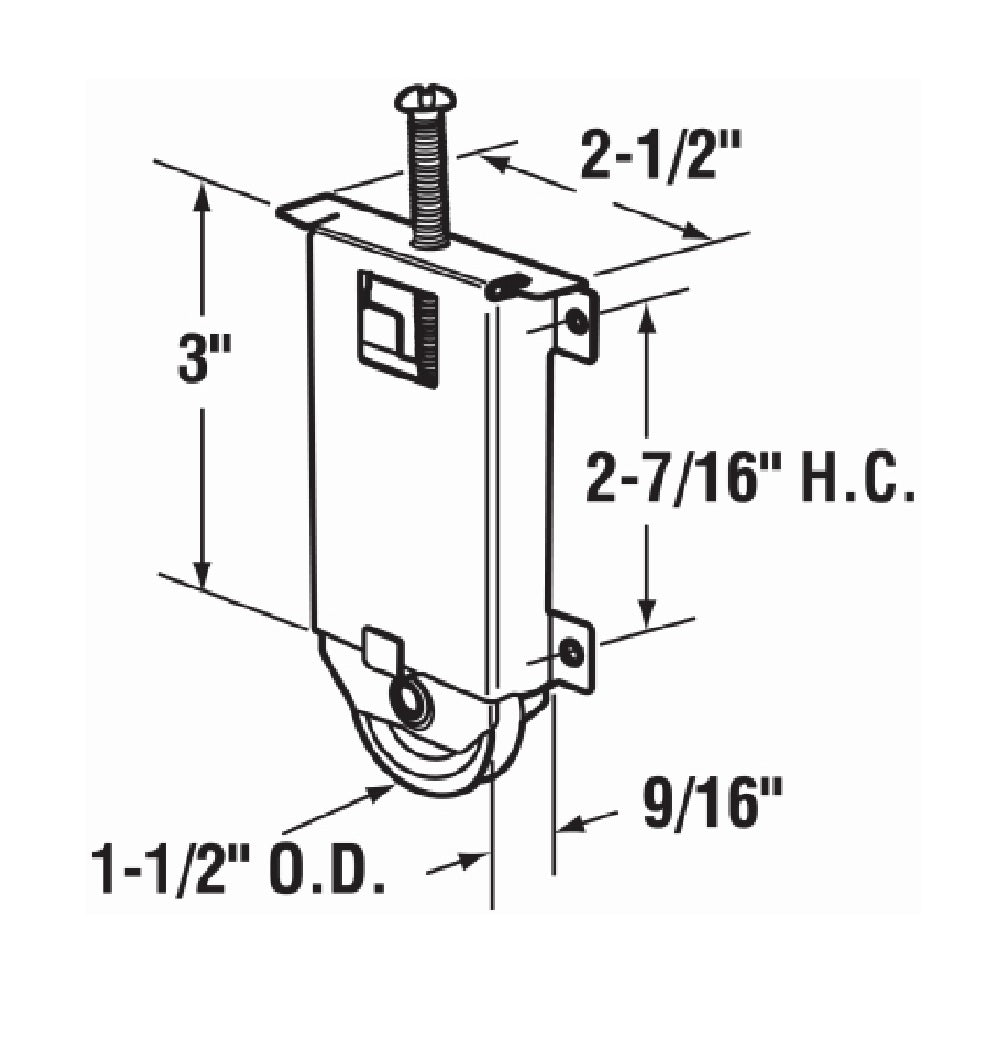

- Housing Material: Steel
- Housing Width: 2-1/2 inch
- Roller Edge Type: Concave
- Mount On: Bottom
- Flat edge roller
- Bearing Type: Stand. Ball Bearing
- Housing Height: 3 inch
- Used on Monarch Mirror L-series doors
- Stamped steel housing with nylon roller
- The flat nylon roller is 1-1/2 inch diameter
- Note that the adjusting screw is centered on the top of the housing and the tabs on either side will insert into slots on that side and will be held in place by the existing screws
Specifications
MFR:
N 6630
SKU:
12601545
UPC:
049793066305
Brand:
Prime Line
Length:
1
Width:
4
Height:
12
Attachment:
