Prime-Line N 6870 Mirror Door Roll Assembly, Steel
Prime-Line N 6870 Mirror Door Roll Assembly, Steel
$13.28
SKU: 12618879
MFG: N 6870
Description

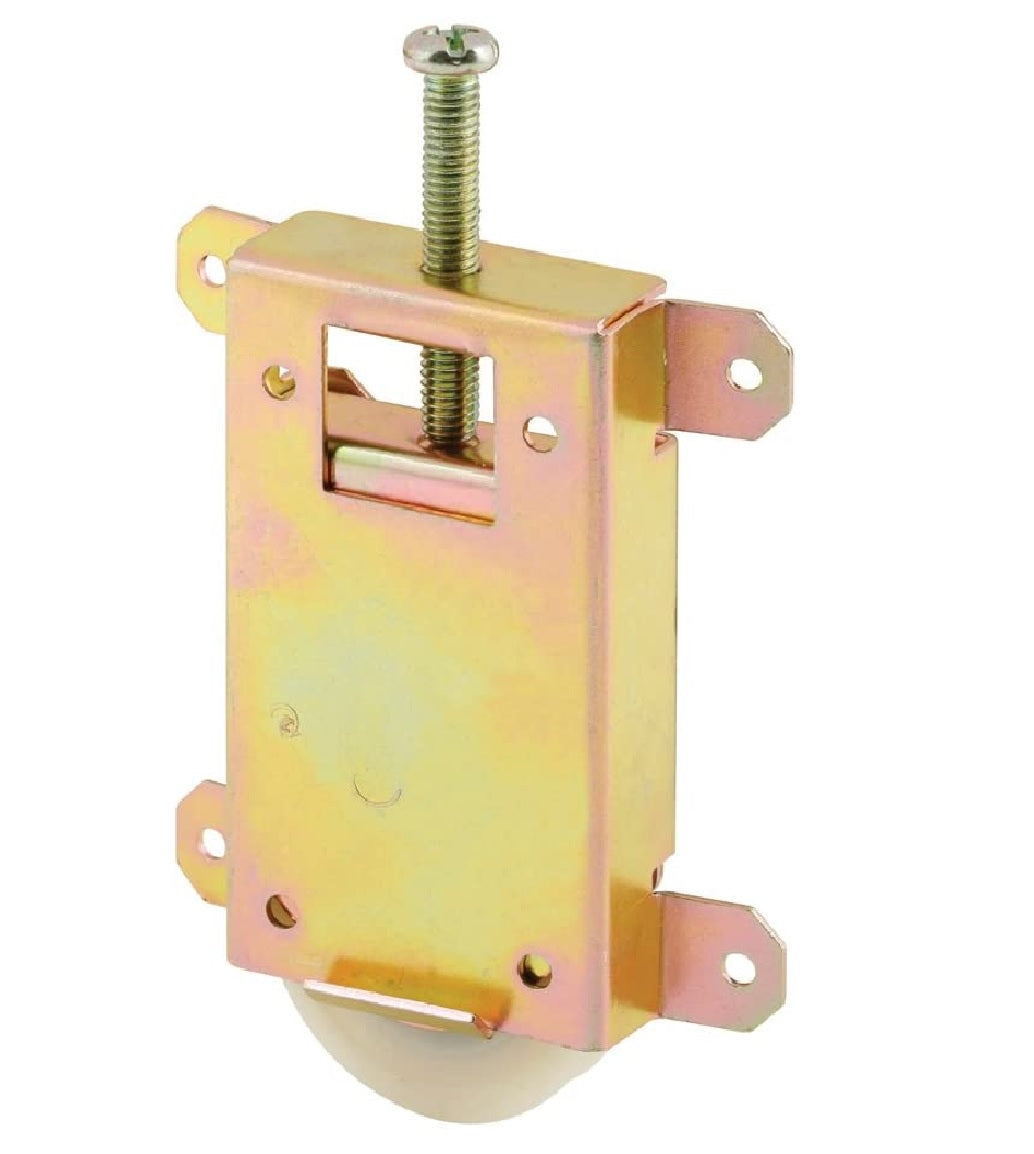

This is a side mounted, top hung wardrobe roller assembly with a tandem 7/8 inch. convex nylon wheel for the front sliding wardrobe door. The stamped steel bracket assembly is adjustable and has an 1/4 inch offset.
Highlights:

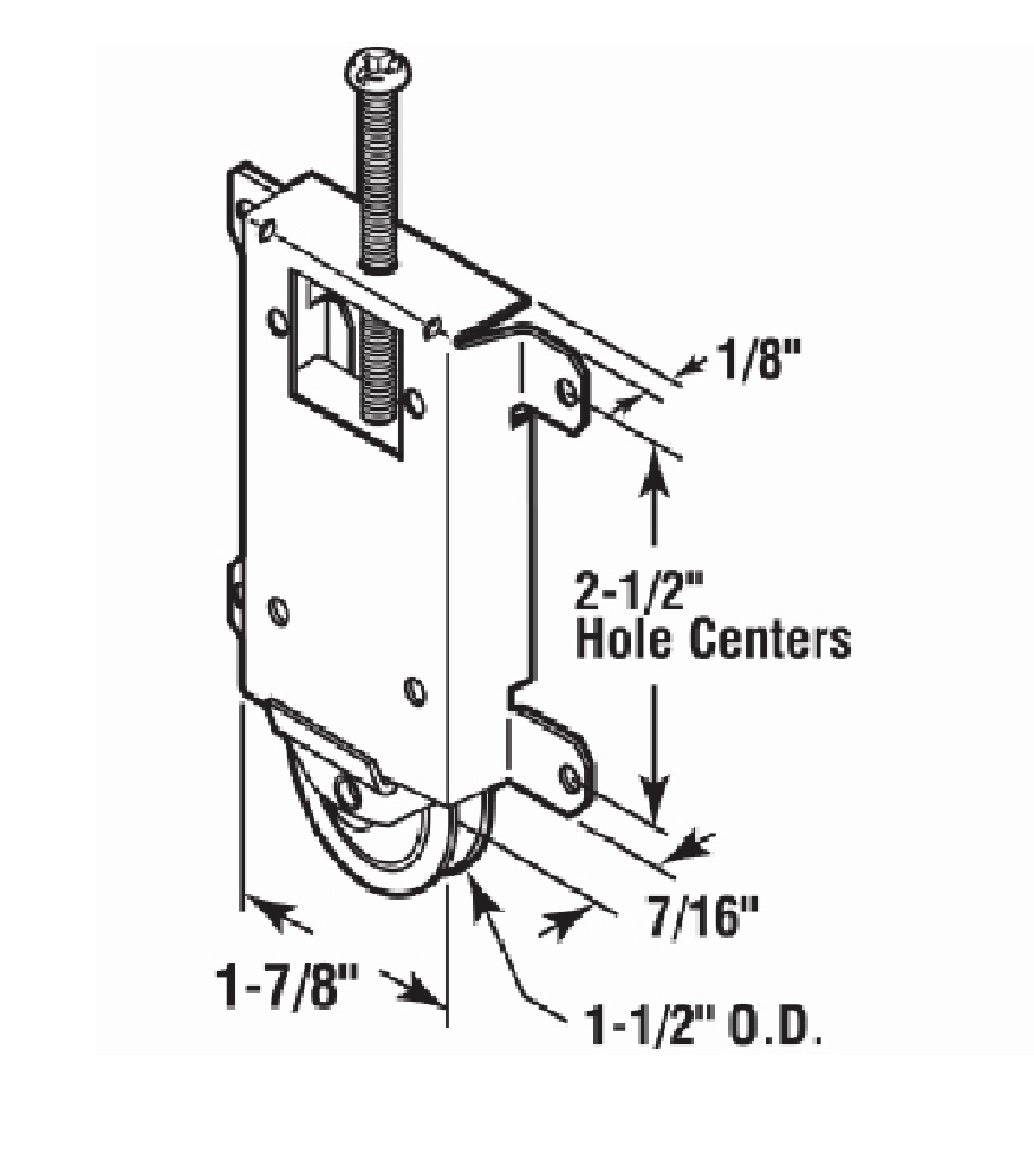

- Housing Width : 1-11/16 inch
- Hole Center to Center : 2-1/2 inch
- Fits on Contractors Mirror Door, and used by a variety of other mirror door manufacturers
- Features 1/2 inch diameter non ball bearing nylon with concave roller
- Constructed of a plastic wheel and an adjustable steel housing
- Center screw is used to adjust height of door after installation
- Use Prime-Line part N 6963 for flat roller
- A Phillips head screwdriver is required for Installation
- It is fitted onto the wardrobe front door and fits 3/4 inch to 1-3/8 inch thick doors
Specifications
MFR:
N 6870
SKU:
12618879
UPC:
049793068705
Brand:
Prime Line
Length:
2
Width:
9
Height:
4
Attachment:
