Prime-Line N 7269 Bi-Fold Door Bottom Pivot and Guide Set, 3/8 Inch
Prime-Line N 7269 Bi-Fold Door Bottom Pivot and Guide Set, 3/8 Inch

Prime-Line N 7269 Bi-Fold Door Bottom Pivot and Guide Set, 3/8 Inch

$8.36

Free shipping on order $35+
1.00000
Request a Bulk Quote

Thank you for your quote request. We will be in touch.
SKU: 12629886
MFG: N 7269

Description

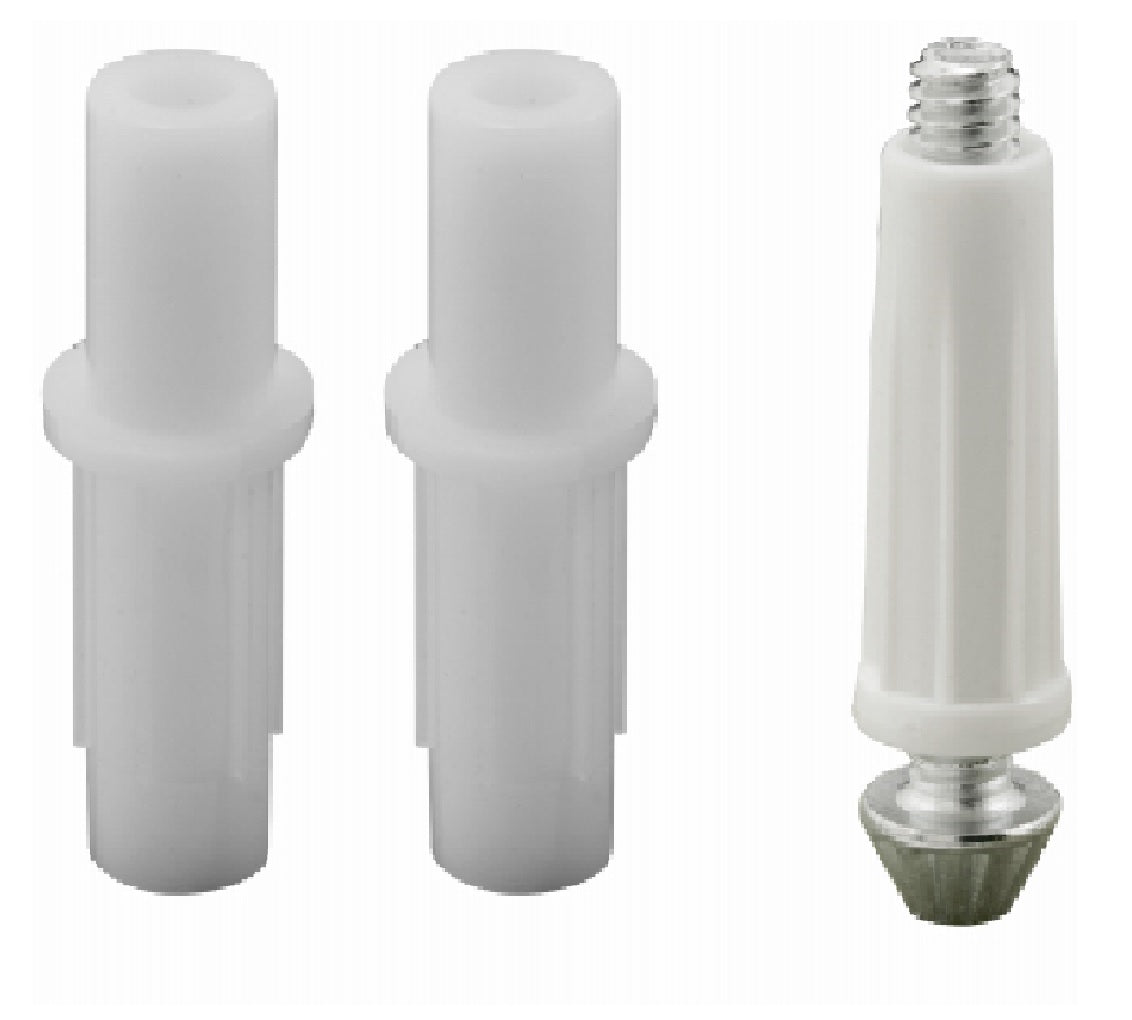

This is a combination set of the bottom pivot and bottom/top guide typically used on a variety of wood bi-fold doors. They are both set a in 3/8 inch diameter plastic housing.

Highlights:

  • Material : Steel & Plastic
  • Base Diameter : 3/8 inch
  • Pin Type : Top & Btm Pivots
  • Push-in installation
  • Easy to install
  • Used by a variety of bi-fold door manufacturers
  • Tapered and grooved tip on the bottom pivot pin

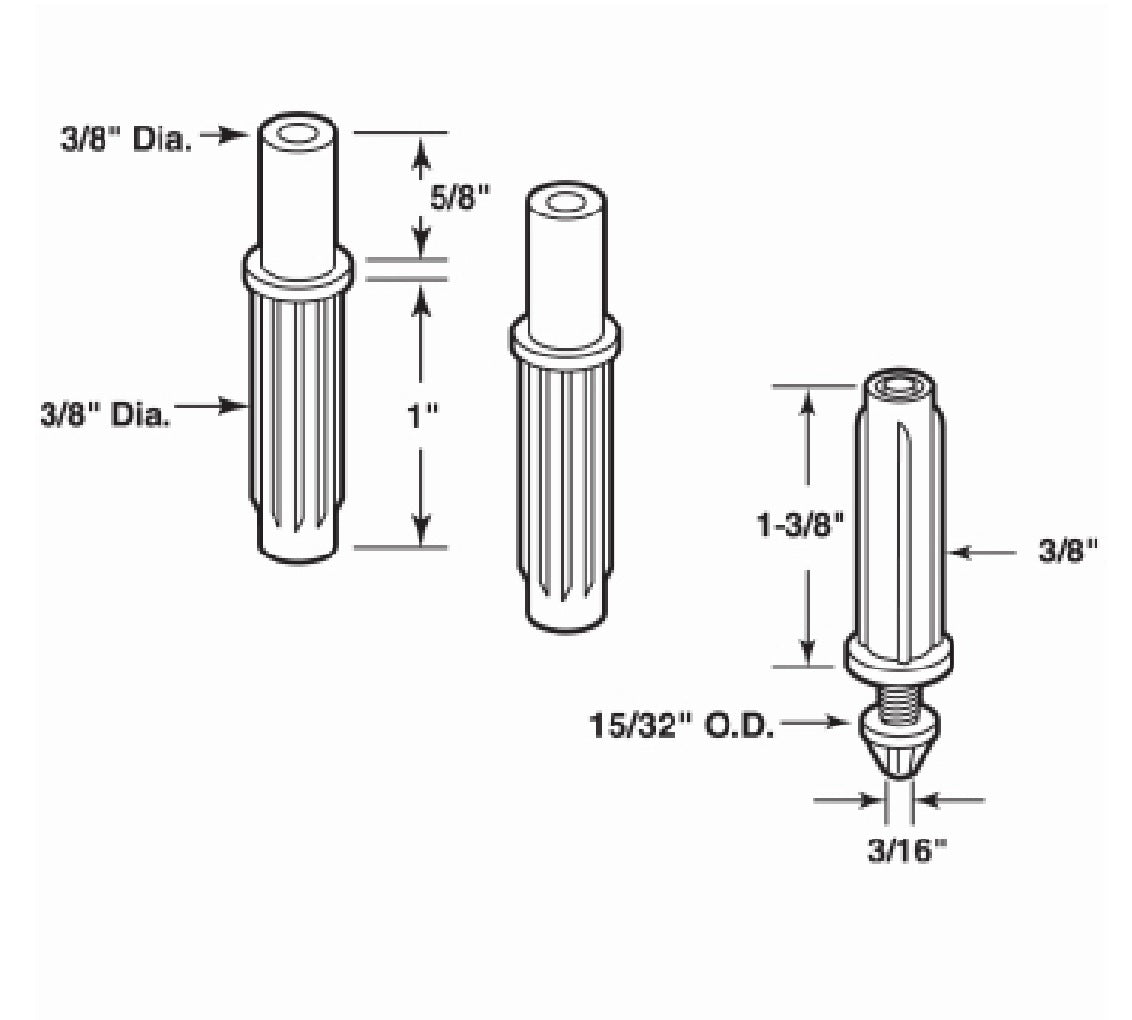

  • 3/8 in. outer diameter housings
  • Steel screw and white plastic housing
  • A soft mallet may be required for installation
  • The bottom pivot has a tapered grooved tip that fits into the Prime-Line part N 6674 bottom pivot bracket
  • The 3/8 in. guide is may be used as either the guide pin or as a top pivot depending on the bi-fold door design
  • To install, lightly tap them into the pre-drilled top mount holes. Used by a variety of bi-fold door manufacturers

Specifications

MFR:
N 7269
SKU:
12629886
UPC:
049793372697
Brand:
Prime Line
Length:
5
Width:
6
Height:
4
Attachment:
