Tell CL101704 Light-Duty Tubular Grade 2 Store Room Knob, Satin Stainl

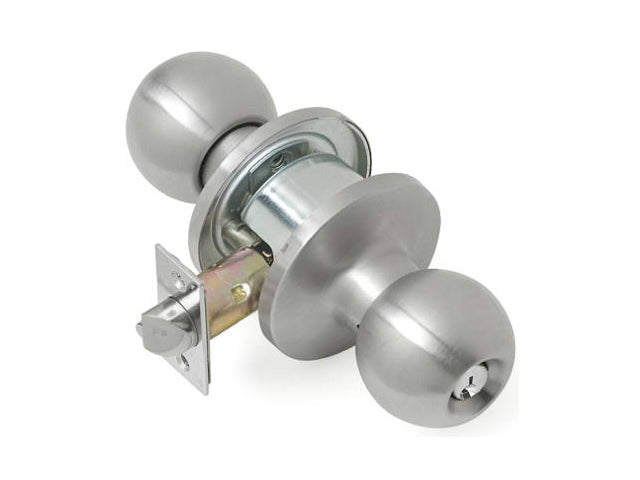

Tell CL101704 Light-Duty Tubular Grade 2 Store Room Knob, Satin Stainless Steel
$35.87
SKU: 10885280
MFG: CL101704
Description
Complies with ANSI A156.2, series 4000, grade 2, 400,000 cycles. Tubular type construction, non-handed. Backset adjustable for 2-3/8" to 2-3/4". For use on interior or exterior wood or metal doors. Use 2-1/8" diameter hole for knob & 1" diameter hole for latch bolt, fits standard 161 door prep. Door range 1-3/8" to 1-3/4". Schlage C keyway. 3 hour fire rated.
- US32D satin stainless steel finish
- Complies with ANSI A156.2, series 4000, grade 2, 400,000 cycles
- Tubular type construction, non-handed
- Backset adjustable for 2-3/8" to 2-3/4"
- Includes 2 nickel sliver keys
- For use on interior or exterior wood or metal doors
- Latch: 1" x 2-1/4", square corner, 3/4" housing diameter, 1/2" throw
- Strike: 1-1/8" x 2-3/4" x 3/32" t strike
- Door range: 1-3/8" to 1-3/4"
- Use 2-1/8" diameter hole for knob & 1" diameter hole for latch bolt, fits standard 161 door prep
- Schlage C keyway
- UL listed
- 3 hour fire rated.
Specifications
MFR:
CL101704
SKU:
10885280
UPC:
737874017048
Brand:
Tell
Length:
13
Width:
4
Height:
9
