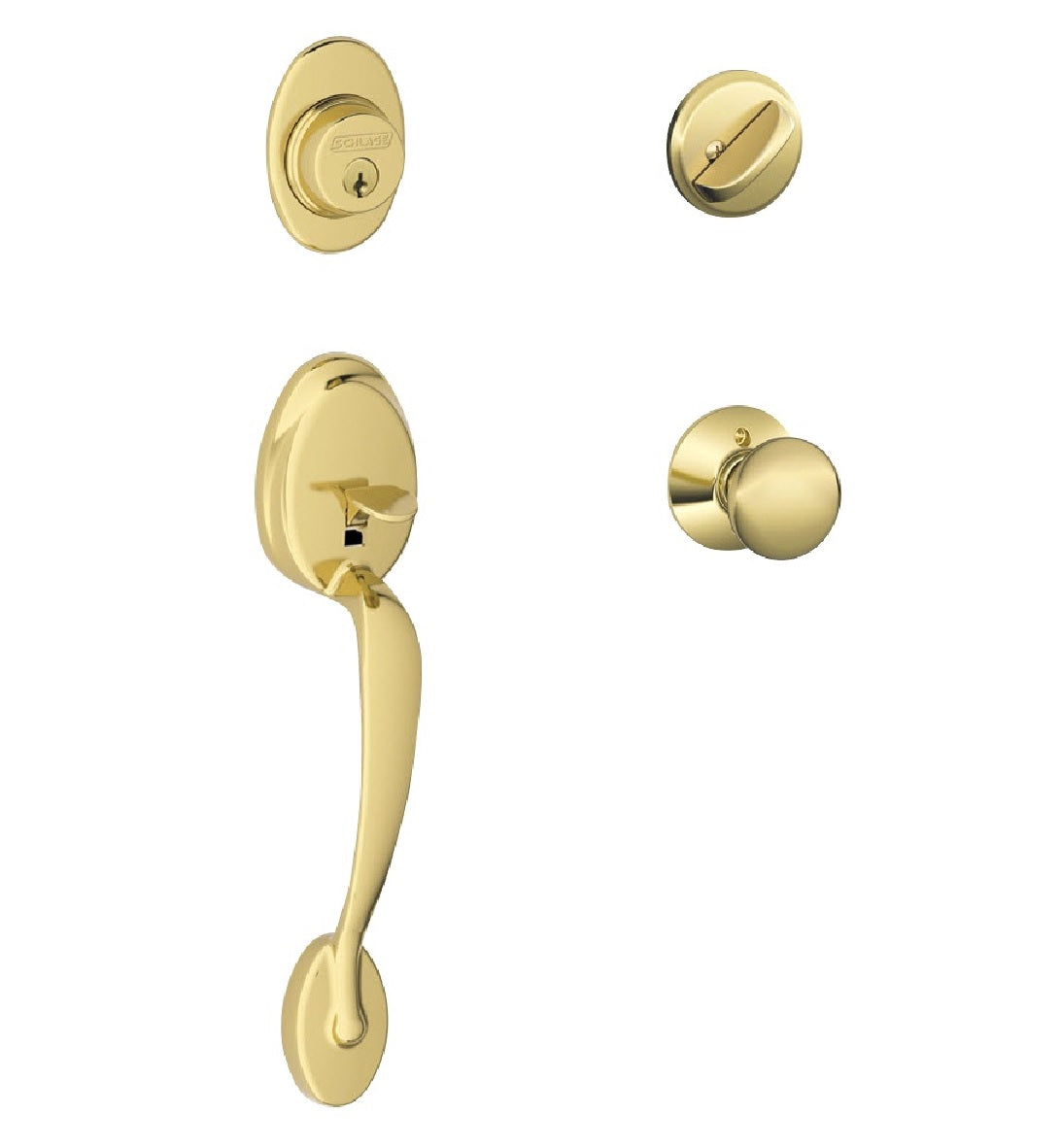

Schlage F60PLY505XPLY605 Plymouth Handleset, Bright Brass
Schlage F60PLY505XPLY605 Plymouth Handleset, Bright Brass
$159.11
SKU: 12172902
MFG: F60PLY505XPLY605
Description
Highlights:
- For residential single and multi-family entrance doors
- Deadbolt thrown or retracted by key from outside or by inside turn unit
- Latch retracted by thumb-piece from inside or outside grip
- Solid forged brass outside trim, wrought brass trim rings with concealed security inserts
- Wrought brass inside trim
- Wrought brass cylinder trim rings reinforced by tapered die cast security insert for resistance to wrenching or prying
Specification:
- Door prep: 1-1/2" or 2-1/8" deadbolt and 2-1/8" latch-bolt cross-bore 7/8" or 1" edge bore
- 1" x 2-1/4" Latch faces; 4" CTC
- Door thickness: 1-5/8" to 1-3/4", packed with extra mounting screws to accommodate 2" doors
- Cylinder: 5-pin with nickel silver pins and keys (2)
- Face-plates: 1" x 2-1/4"
- Strikes: Deadbolt - 1-1/8" x 2-3/4", square corner, no lip, dust box and door frame reinforce
- Latch-bolt - 1-5/8" x 2-1/4" full lip
- Bolt: Maximum security B300 single cylinder or B362 double cylinder deadbolt with 7/8" housing diameter, 1" throw
- ANSI/BHMA: Grade 1 security features
- Dual option universal: Both handle-set and deadbolt fit all doors, 2-3/8" or 2-3/4" backset, square corner, round corner, or drive-in preps
Specifications
MFR:
F60PLY505XPLY605
SKU:
12172902
UPC:
043156227570
Brand:
Schlage
Length:
11
Width:
6
Height:
11
