Tell CL100052 Light Duty Commercial Tubular Door Privacy Knob, St Stee

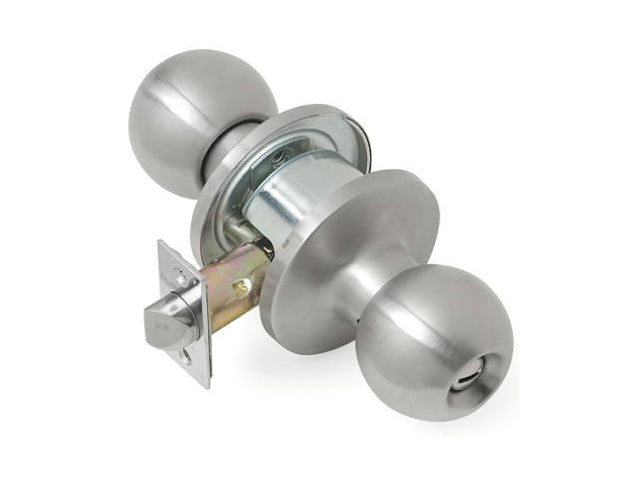

Tell CL100052 Light Duty Commercial Tubular Door Privacy Knob, St Steel, Grade 2
$29.18
SKU: 10885277
MFG: CL100052
Description
Tubular grade 2, privacy knob. US32D satin stainless steel finish. Complies with ANSI A156.2, series 4000, grade 2, 400,000 cycles. Tubular type construction, non-handed. For use on interior or exterior wood or metal doors. 1-3/8" to 1-3/4" thick, latch. 1" x 2-1/4", square corner, 3/4" housing diameter., 1/2" throw. Backset adjustable for 2-3/8" to 2-3/4". Strike, 1-1/8" x 2-3/4" x 3/32" t strike. Use 2-1/8" diameter hole for knob & 1" diameter hole for latch bolt. Fits standard 161 door prep. Schlage C keyway. UL listed, 3 hour fire rated.
- Tubular grade 2 privacy knob
- US32D satin stainless steel finish
- Complies with ANSI A156.2
- Series 4000, grade 2, 400,000 cycles
- Tubular type construction, non-handed
- For use on interior or exterior wood or metal doors
- 1-3/8" to 1-3/4" thick, latch. 1" x 2-1/4", square corner, 3/4" housing diameter., 1/2" throw
- Backset adjustable for 2-3/8" to 2-3/4"
- Strike, 1-1/8" x 2-3/4" x 3/32" t strike
- Use 2-1/8" diameter hole for knob & 1" diameter hole for latch bolt
- Fits standard 161 door prep. Schlage C keyway
- UL listed
- 3 hour fire rated.
Specifications
MFR:
CL100052
SKU:
10885277
UPC:
737874297600
Brand:
Tell
Length:
12
Width:
4
Height:
9
