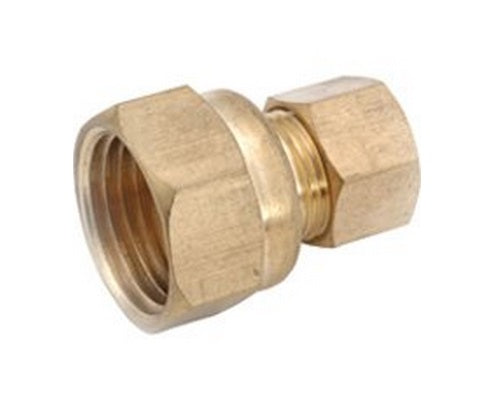

Anderson Metals 750066-0812 Brass Compression Fittings, 1/2" X 3/4"
Anderson Metals 750066-0812 Brass Compression Fittings, 1/2" X 3/4"
$14.39
SKU: 11805756
MFG: 750066-0812
Description
Highlights:
- Female coupling
- Id Tube x Pipe = 1/2" x 3/4"
- Three piece construction: Nut, sleeve and body with attached insert
- Use with copper, brass, aluminum, or plastic tubing
- -65 degrees F. to +250 degrees F. temperature range
- Easy to disassemble, no flaring tool required
- Primary uses water, gasoline, oil and vacuum lines
- Bagged
How To Assemble:
- Cut smooth, square end on tubing
- Slide nut, then sleeve onto tube
- Threads must face end
- Insert tube into fitting
- Thread nut onto fittings until sung. then as follows
- Up to 1/4" 1 1/4 turns
- 5/16" 1 3/4 turns
- 3/8" and up 2 1/4 turns
Specifications
MFR:
750066-0812
SKU:
11805756
UPC:
719852950240
Brand:
Anderson Metals
Length:
8
Width:
4
Height:
8
