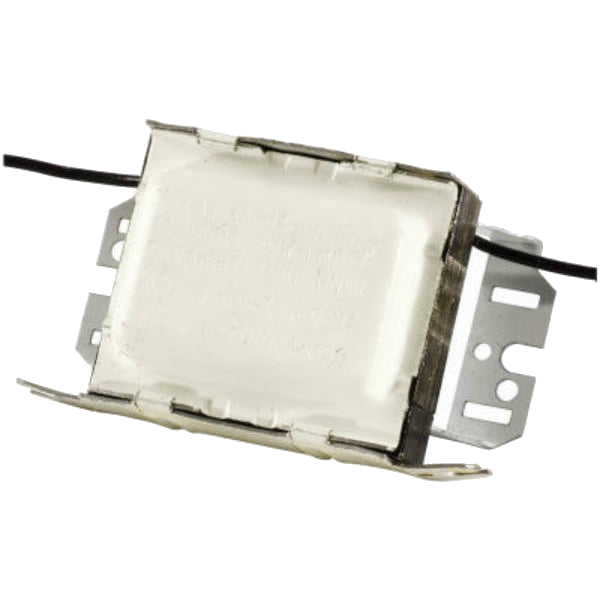

Philips LC1420CI Standard Magnetic Pre Heat Lamp Ballast, 120V
Philips LC1420CI Standard Magnetic Pre Heat Lamp Ballast, 120V
$11.84
SKU: 10115299
MFG: LC1420CI
Description
Its design helps extend the life of lamps subjected to frequent switching. For 1 F14,15, 20 lamp. Wiring diagram or instruction sheet enclosed.
- For 1 F14,15, 20 lamp
- Magnetic, pre-heated design
- 60 Hz input frequency
- Wiring diagram or instruction sheet enclosed
- Starter required (not included).
Specifications
- Ballast Type: Magnetic Fluorescent
- Suitable For Outdoor Use: Yes
- Automatic Restart: Yes
Operating & Electrical
- Input Voltage: 120 V
- Input Frequency: 60 Hz
- Ignition Method: Preheat
- Crestfactor (Nom): 1.5
- Ignition Time (Nom): 1s
- Input Current (Starting): 0.36
- Ballast Factor (Nom): 0.93
- Power Factor (Nom): 0.52
- Input Current (Nom): 0.33 A
- Input Power (Nom): 21 W
- Rated Lamp Power: 20W
Wiring
- Wire Striplength: 0.50/0.375 mm
- Lamp Connection: Series
- Wire Gauge (Nom): 18AWG mm
- Wire Type: Solid
- Remote Wiring Configuration Allowed: Yes
- Max Ballast-Lamp Distance Remote Wiring: 30'
Mechanical & Housing
- Housing Material: Metal
- Housing: C2
- Housing Dimensions: 1.06" x 1.59" x 1.81"
Approval & Application
- EMC Immunity Standard: FCC Non-Consumer
- Hum And Noise Level: A
Specifications
MFR:
LC1420CI
SKU:
10115299
UPC:
781087101308
Brand:
Philips
Length:
14
Width:
10
Height:
2
