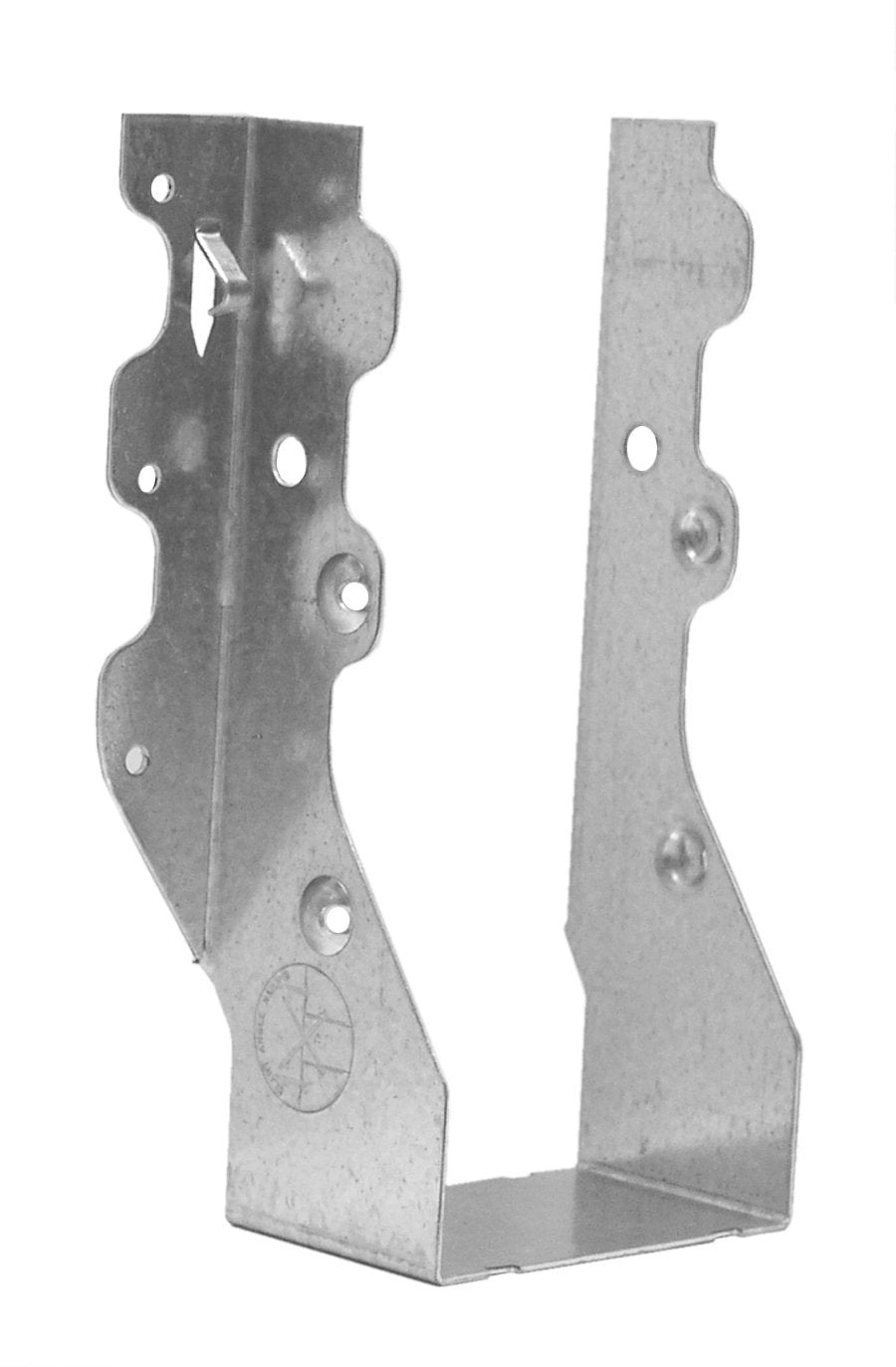

USP Structural Connectors JUS28-2TZ Slant Joist Hanger, 2" x 8"
USP Structural Connectors JUS28-2TZ Slant Joist Hanger, 2" x 8"
$6.19
SKU: 12264855
MFG: JUS28-2TZ
Description
Double shear nailing for fewer nails and faster installation. Dimples allow for 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications. Meets ICC-ES ESR-1881, FL821, L.A. City RR25779, Dade county, FL 11-0510.01 and 07-0419.01 codes.
Highlights:
- Series: JUS
- Width: 3-1/8"
- Height: 2"
- Material: Steel
- Finish: Triple zinc plated
- Type: Double Shear, Slant
- Size: 2" x 8"
- Style: Face mount
- Length: 7-1/8"
- Thickness: 18 ga
- Load capacity: 1290 lb
- Skew angle range: 30-45 deg
- Carried member fastener type: (4) 16d Nail
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Specifications
MFR:
JUS28-2TZ
SKU:
12264855
UPC:
081942101475
Brand:
Usp Structural Connectors
Length:
4
Width:
1
Height:
4
Attachment:
