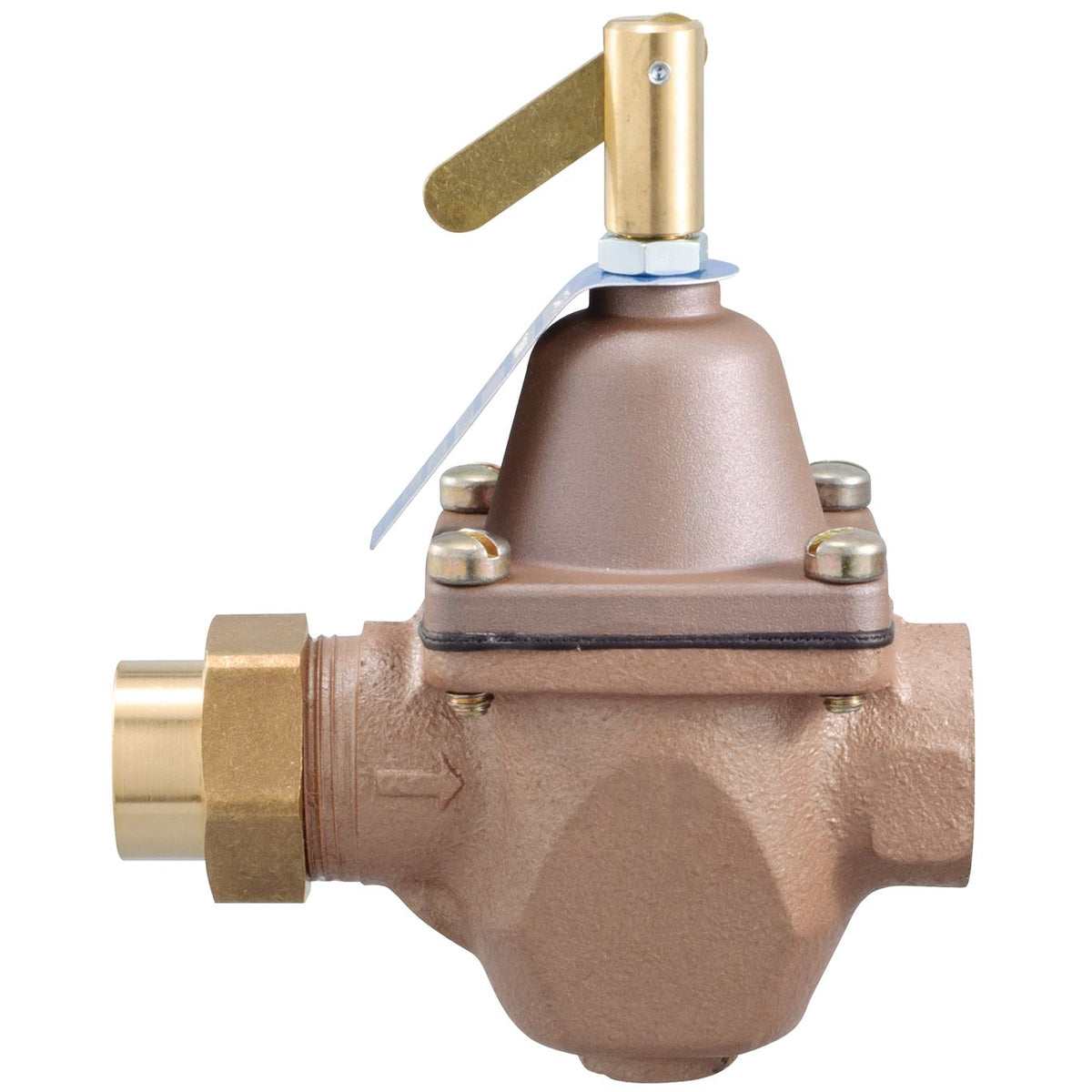

Watts 0950001 High Capacity Feed Water Pressure Regulator, 1/2", Iron
Description
This 1/2 inch high capacity feed water pressure regulator is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times. It also provides make-up water to the system in the event of system leaks. It consists of an iron body construction with NPT threaded inlet and outlet connections, a tight seating check valve, purge lever for manual purging, and a stainless steel strainer. This regulator has high capacity performance and simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems.
- Part of the 1156F Series
- 1/2" union solder inlet x 1/2" female pipe thread outlet
- Use to fill the boiler & system piping with water & to maintain water pressure
- Use to provide make up water to the system
- Fast fill feature is used to speed filling & purging of air from the piping on the initial fill
- Manual purge lever included to manually force the valve open for efficient system purging
- Stainless steel strainer protects valve disc from fouling
- Tight seating check feature
- High capacity
- Iron and bronze construction
- Tight seating check valve
- Purge lever for manual purging
- Easy to install.
Specifications:
- Adjustable Reduced Pressure Range - 10 to 25
- Adjustable Reduced Pressure Range-BAR - 0.7 to 1.7
- Body Material - Bronze
- Brand Name - Watts
- Corrosion Resistant Coating - No
- Gauge Option - No Gauge
- GDS Status - Registered
- Inlet Connection Size - 1/2 IN
- Inlet Connection Type - Socket
- Inlet Thread Type - Does Not Apply To Product
- Lead Free - NO
- Maximum Operating Temperature-Celsius - 100.00
- Maximum Operating Temperature-Fahrenheit - 212
- Maximum Working Pressure-BAR - 6.80
- Maximum Working Pressure-PSI - 100
- Minimum Temperature - Celsius - 0.50
- Minimum Temperature-Fahrenheit - 33
- Model Number - S1156
- Outlet Connection Size - 1/2 IN
- Outlet Connection Type - Female Threaded
- Outlet Thread Type - Does Not Apply To Product
- Part Number - 0950001
- Series - 1156F
- Standard Reduced Pressure Setting-BAR - 1.00
- Standard Reduced Pressure Setting-PSI - 15
- Strainer - Yes
- Strainer Material - Stainless Steel
- Thermal Expansion Bypass - No
- Valve Style - Standard.
